Spectrum DSP M3+ GEN-COVERAGE
DSP M3+
£209.00

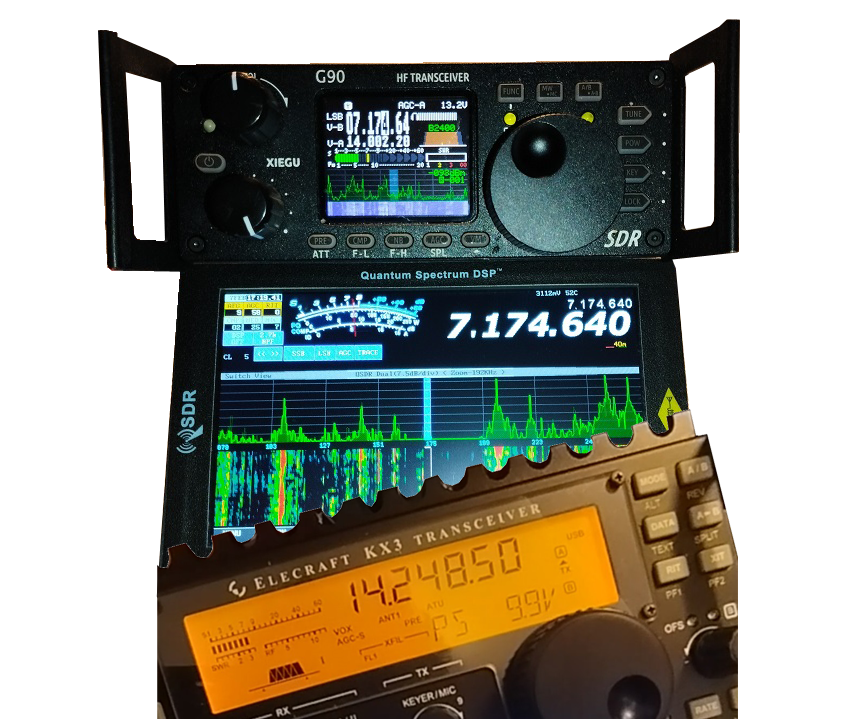

Quantum Spectrum DSP M3+ with RF/IF and IQ input, 1.5 MHz - 160 MHz all-mode coverage, fully built and tested, with powerful Arm M7 Cortex 32-bit 1027 DMIPS DSP processor board, 2 MB program memory, 1MB SRAM, 4K backup RAM, RTC, 5" day-bright 800x480 XGA display, case and stylus pen, with Spectrum DSP firmware. Power supply is 7-17 VDC 160mA (typ). Provides a spectrum bandwidth of 96/192/384 KHz and 1 MHz on PC).
Built-in CW, RTTY and FreeDV (optional) decoders. We will be adding CW text sending by typing, plus many new features.
Connects to IF & IQ outputs and TTL serial ports of HF transceivers, CAT compatible with Kenwood, Yaseu, Icom, Elecraft (M3+232 version), Xiegu, QRP Labs, Alinco & uSDX. Includes USB port with virtual Com port to connect to PC, and firmware debug and update USB port. Supplied with IQ and Com jack cables, documentation and technical support. USB and power cables are not included.
2-4 day Express Shipping is included, except remote locations where excess may apply.
By contacting us you'll receive information on the Q-Spectrum and accessories plus get onto the Group buy list early. You'll also get updates on the latest DSP radio technology as it appears, and a contact email address for questions and orders.
Group buy: to reduce costs the first group buy is being organised.
Buy direct: We'll advise you of delivery times & provide a link for secure purchases.
*Data protection: Your information will solely be used to send you the information you request, it will not be shared with other parties, and it will be erased on request. On-line payment providers will be provided with your information for the required transaction only.
